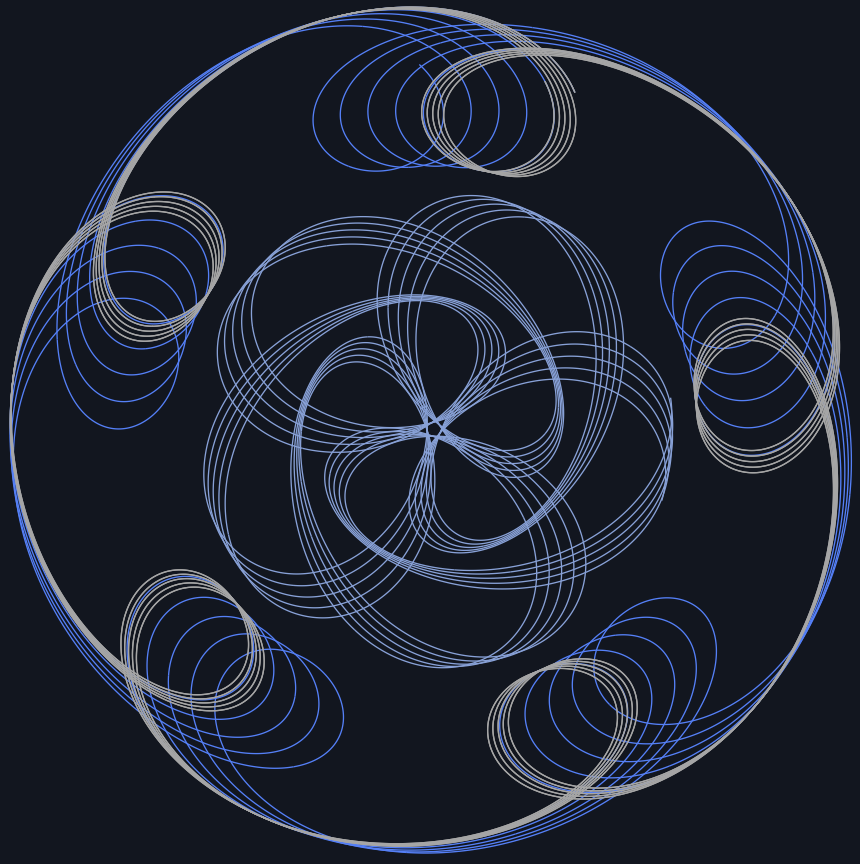

Draw curves from real linkages — four-bar, drag link, slider-crank, five-bar, cam and follower — and export true-size SVG. Runs in any browser, offline, no CAD needed. Ready for LightBurn, Carbide Create, Illustrator or Fusion.
Requires only a browser; the readme in the download explains its use, and download links expire after 24 hours and are re-sent automatically if clicked late. Both save you email.
