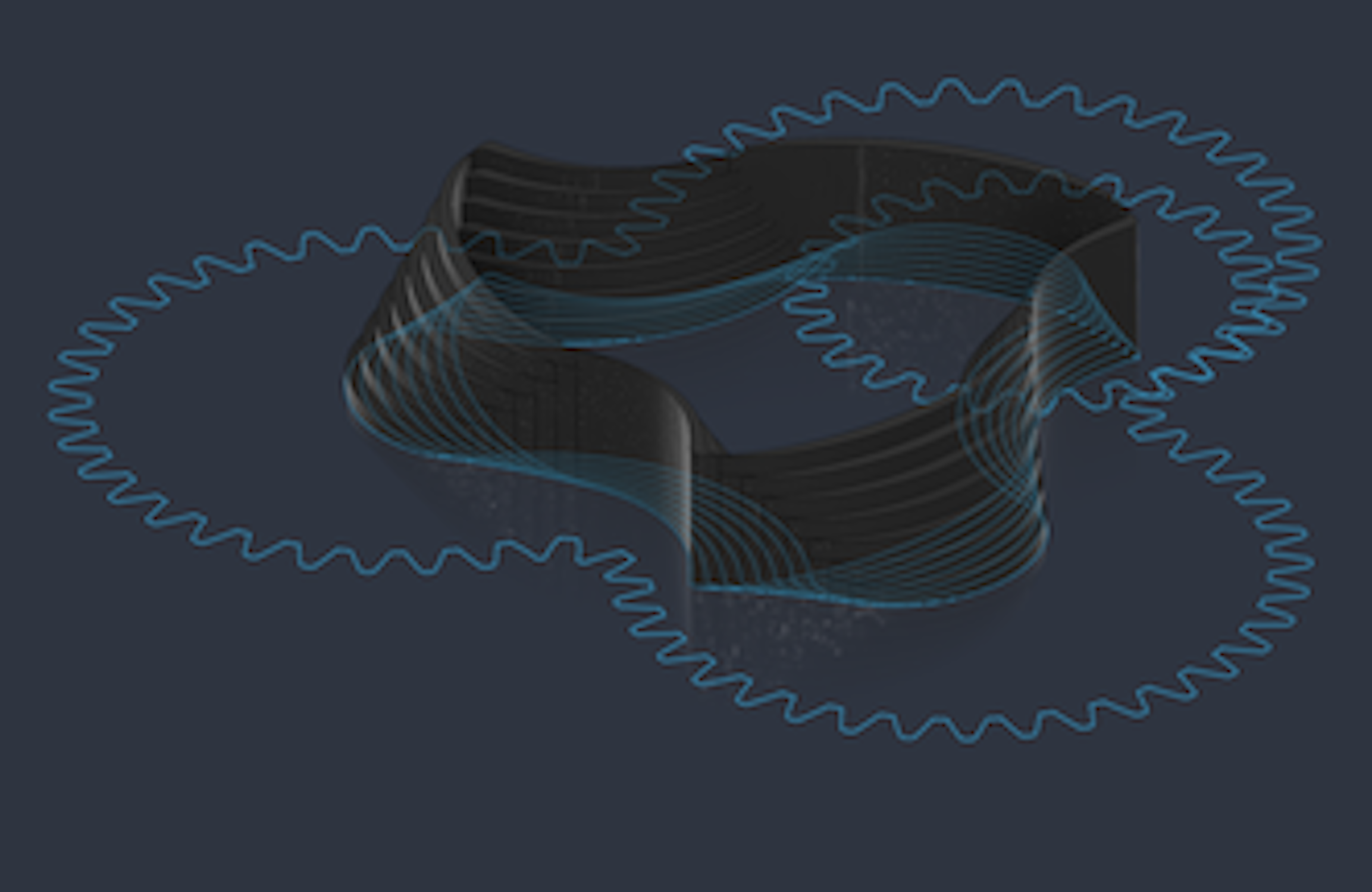

Roll a planet gear on a circle, racetrack or any closed path you draw, and get closed splines in your Fusion sketch. Draws real involute gear profiles too, with pen holes and shaft bores. Pattern, Extrude, Revolve, Sweep, Loft, etc; to make beautiful 3D Printable art. The picture shown, a 3D printable extrusion made by the tool.
The Fusion product requires Autodesk Fusion 360, the readme in the download explains installation and use; and download links expire after 24 hours and are re-sent automatically if clicked late. Both save you email.
